63KVA Canopy Diesel Generator , 1500 RPM Diesel Generator

Product Categories
FUJIAN ACEPOW EQUIPMENT CO.,LTD
Contact Now

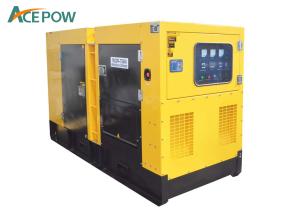

63KVA Canopy Diesel Generator , 1500 RPM Diesel Generator

  • 1
  • 2

Brand Name : ACEPOW

Model Number : APF-63

Certification : CE,ISO, SASO

Place of Origin : CHINA

MOQ : 1 PCS

Price : Negotiate

Payment Terms : L/C, D/P, T/T

Supply Ability : 10000SETS/YEAR

Delivery Time : 25 DAYS

Packaging Details : NUDE PACKING,PLYWOOD CASE

Genset Frequency : 50HZ

Genset Speed : 1500RMP

Genset voltage : 400/230V,220/380V

Genset Phase : AC Three Phase/ single phase

Engine Brand : Fawde

Control panel : Deepsea / ComAp / Harsen / Smartgen 6110

Standard Configuration : Smartgen HGM6120 Control System

Optional Configuration : PMG Alternator

Type : canopy diesel generator

Alternator : China stamford

Contact Now

100% Copper Stability Canopy Diesel Generator 63kva 50kw Fawde Engine Colant Heater Super Silent Generator Plant

Our Diesel Generator Engine for Choice
1. Cummins Engine 20KVA - 2000KVA
2. Deutz Engine 20KVA - 150KVA
3. FPT Iveco Engine 30KVA - 350KVA
4. Perkins Engine 8KVA - 2000KVA
5. Volvo Engine 85KVA - 700KVA
6. Doosan Engine 60KVA - 850KVA
7. Lovol Engine 20KVA - 150KVA
8. Yangdong Engine 8KVA - 40KVA
9. Weichai Engine 8KVA - 150KVA
10. Shanghai Engine 60KVA-1000KVA
11. Yuchai Engine 20KVA-1125KVA

OUR GENERATOR ADVANTAGE :
Steady and reliable Performance, Convenient Service
Low consumption, Perfect Maneuverability
Easy Installation and Maintenance
Wide Application

Good reputation for Reliable quality & Reasonable price

Strong technical support

Advanced production line with skilled workers

GENSET MODEL APX-15 APX-50 APX-60 APX-85
Prime output (KVA/KW) 15/12 50/40 60/48 85/68
Standby output(KVA/KW) 16.5/13.2 55/44 66/53 93/75
Rated voltage(V) 400/230 400/230 400/230 400/230
DIESEL ENGINE MODEL 4DW81-23D 4DX23-65D CA4DF1-09D CA4DF2-12D
Rated Power(kW) 18 53 65 75
Cylinder numbers In-Line 4 cylinders
Method of operation 4-stroke
Govering method Mechanical
Starting system DC 12V Electronic start
Cooling method Closed water cooled
Total displacement(L) 2.27 3.86 4.75 3.86
Compression ratio 17.0:1 17.0:1 17.0:1 17.0:1
Bore*Stroke(mm) 85*100 102*118 110*125 102*118
Fuel consumption(L/h) 4 11 7 ≤7
ALTERNATOR MODEL BC164D UC224D UC224E UC224G
Rated Power(kW) 12 40 48 68
Rated frequency(Hz) 50
Rated speed(rpm) 1500
Phase /connection 3-phase, 4-wire connected (12-wire for 3-phase)
Number of Bearing 1
Power Factor 0.8
Protection Grade IP23
Exciter Type Brushless, Self-Exciting
Insulation Class,
Temperature Rise		 H/H
CONTROL PANEL V-meter, A-meter, Frequecny meter, circuit breaker, transfer switch, temp. and pressure gauges, indicating lamp, hour meter, key starter, etc.
NET WET(kg/Open type) 630 840 1070 1070
PACKING SIZE(mm/Open type) 1650x700x1100 190x800x1170 1950x860x1330 1950x860x1330

63KVA Canopy Diesel Generator , 1500 RPM Diesel Generator


Product Tags:

63 KVA Canopy Diesel Generator



380V Canopy Diesel Generator



1500 rpm diesel home backup generator


Quality 63KVA Canopy Diesel Generator , 1500 RPM Diesel Generator for sale

63KVA Canopy Diesel Generator , 1500 RPM Diesel Generator Images
